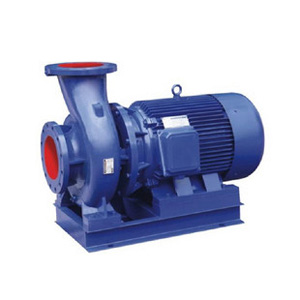

ISW horizontal clear water pump

Product description
ISW horizontal clear water pump's advantages as below:
Stable operation: absolute concentricity of pump shaft and excellent static and dynamic balance of impeller ensure stable operation without vibration absolutely.
Zero leakage: hard alloy seal with different materials ensures zero leakage for transportation of different media.
Low noise: water pump supported by two low-noise bearings contributes to stable operation without noise basically except slight sound of motor.
Low failure rate: its structure is simple and reasonable with key parts adopting fittings with international first-rate quality, contributing to no failure of the whole machine and much longer working hours.
Easy for maintenance: it's easy to replace seal and bearing.
More space-effective: the outlet is available for three directions, leftwards, rightwards and upwards, easy for pipeline layout and installation and space-effective.

Application
1. ISW horizontal type centrifugal clear water pump is used to transport clear water and other liquid has chemical and physical property similar with the clear water. It is applicable to water supply and drainage for industry and city pressure increasing water supply for high building ,garden irrigation, pressure increasing for fire fighting, long distance transportation, heating and cooling circulation, cold and warm water circulation pressure increasing and matching equipment, the using temperature is T ≤ 80 ℃. 　　
2. ISWR horizontal type hot water pump can be broadly used in metallurgy, chemistry, waving, paper-making, boiler hot water pressure increasing circulation transportation for hotels and warmth supply system for cities. The using temperature for ISWR type is T ≤ 120 ℃ .
3. ISWH horizontal type chemical pump is used to transport the liquid , which is corrosive, no containing solid grain, has the viscosity similar with water. It is applicable to petroleum, chemistry, metallurgy, electricity power, paper-making, food, pharmacy and synthetic fiber department, .The using temperature for ISWH type is T ≤ 120 ℃.
4、ISWY horizontal type pipe oil pump is used to transport gasoline, kerosene, diesel oil products and other flammable explosive liquid , the temperature of the medium transported is - 20 ℃ ～ 120 ℃ .
5、 ISWHY type stainless steel anti-explosion chemical centrifugal pump is applicable to transport the flammability chemical liquid.
6、ISWD is horizontal low speed centrifugal pump is applicable to the environment require very low noise and circulation for air-conditioner,.

Working Conditions
1．The maximum working pressure of pump system is 1．6MPa，namely pump suction pressure +pump delivery head≤1．6MPa．(To acquire working pressure of pump system greater than 1．6MPa should be specified separately when placing an order for our convenience to use cast steel for wetted pads and connection parts in production)．　
2．The medium to be handled shall be clean water or other liquids similar to water in physical and chemical properties．(To handle medium carrying small particles，please specify when placing an order for our convenience to use wear resistant mechanical seal)．
3．Ambient temperature not exceeding 40℃，height above sea level not exceeding 1，000m，and relative humidity not exceeding 95％．

Technical Data
Flow rate: up to 1450 m³/h
Head: up to 162 m
Speed: max 2960 rpm
Temperature: max 120 ℃
Casing pressure: up to 1.6 MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
