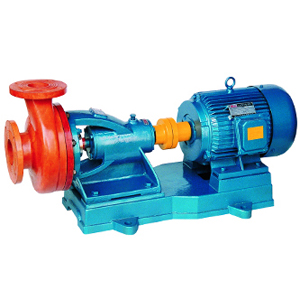

FS horizontal centrifugal pump

Product description
FS series horizontal glass reinforced plastic centrifugal pump features advanced and reasonable structural design, high standardization, sound universality and interchangeability of components, easy disassembly and maintenance. The components in contact with medium are phenolic glass fiber pieces modified by PVB, and formed by high temperature die stamping. Featured by the outstanding performances of light weight, high strength, non-deforming, temperature and corrosion resistance, this product can be used partially instead of the precious metal of stainless steel containing molybdenum, titanium and titanium alloy for corrosion resistance purpose. Shaft seal: WB2 externally mounted F4 bellows mechanical seal to achieve dependable seal and long service life.
Driven: directly driven by motor through jaw resilient coupling.

Application
Widely used in the industries of petrochemical, refining, dyestuff, printing, pesticide, pharmaceutical, rare earth and fertilizers, etc., this pump is an indispensable optimal choice to handle the corrosive medium, like various non-oxidated acid (hydrochloric acid, thin sulfuric acid, formic acid, acetic acid and butyric acid) not containing solid particles, not easily crystallized, and temperature not over 100℃.

Technical Data
Flow rate: up to 92.8 m³/h
Head: up to 35 m
Speed: max 2900 rpm
Temperature: max 100 ℃
Casing pressure: high pressure
Shaft seal: mechanical sealing
Material: cast iron, stainless steel,
