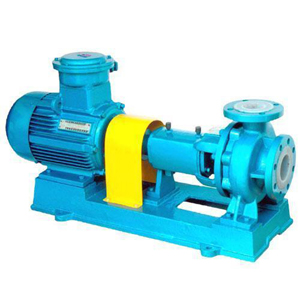

IHF centrifugal pump

Product description
IHF centrifugal pump is designed to international standard, with pump body in metal casing lined with F46. Pump cover, impeller and shaft sleeve are all in metal pieces coated with flour plastic, sintered and pressed completely. Shaft seal uses externally mounted bellows mechanical seal, stationary seal ring made of 99.9％ alumina ceramics or silicon nitride, while rotating seal ring made of PTFE packing material to feature outstanding corrosion and wear resistance and dependable sealing performance.

Application
This pump is suitable for handling rigorous strong corrosive medium of any thickness, like sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aquaregia, strong alkali, strong oxidant, organic solvent and reducing agent. It is one of the most updated anticorrosive equipment now in the world, featuring advanced structure, strong corrosion resistance, dependable sealing performance, stable operation, low noise and long service life.

Technical Data
Flow rate: up to 100 m³/h
Head: up to 80 m
Speed: max 2900 rpm
Temperature: max 200 ℃
Casing pressure: up to 1.6MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
