Description
General

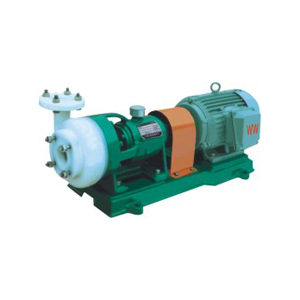

Fluoroplastic alloy is the best corrosion resistant material in the world. Our FSB and FSB-D series of pump with this material are characterized by extra strong resistance to corrosion, high mechanical strength, non-aging and no decomposition of toxin, which is applicable for transportation of acid and alkali solutions with any concentrations, oxidizer and other corrosive media. Therefore, it is widely applied in such industries as chemical engineering, petroleum, pharmacy, pesticide, smelting, dyestuff, papermaking and electroplating.
Structure specification
FSB fluoroplastic alloy pump consists of body, impeller, back bonnet, sealing element, bracket, pump shaft, bearing, coupler, fastening bolt, nut and base plate.
1.Body: steel flange ring with each embedded in connecting parts on both right and left sides, made of moulded plastic alloy.
2.Metal materials embedded in right side of bonnet, made of moulded plastic alloy.
3.Impeller: adopting coupling shaft, with precision processing of high-grade steel and coating of plastic alloy after die pressing for metal shaft, integrating impeller and metal shaft securely, thus contributing to the medium soaking part made of plastic alloy.
4.Mechanical seal: adopting WB2 and ST adjustable end face seal technology without cooling water, made from carborundum, high-purity alumina ceramics, 4F packing, graphite, etc.
Structural Diagram of FSB Pump
| NO. | Name | Material | NO. | Name | Material |
| 1 | Body | 8 | Lifting eye bolt | ||
| 2 | Impeller | 9 | Oil immersion lens | ||
| 3 | Bonnet | 10 | Bearing cap | ||
| 4 | Gland | 11 | Front bearing cap | ||
| 5 | Sealing element | 12 | Coupler | ||
| 6 | Bracket | 13 | Fastening bolt | ||
| 7 | Pump shaft |
Type and parameters
| FSB | Model | Capacity(m3/h) | Head(m) | Shaft power (KW) | Motor power (KW) | Speed (RPM) | NPSH (m) | Efficiency (%) |
| 25-18 | 3.6 | 18 | 0.95 | 1.5 | 2900 | 3 | 55 | |
| 25-20 | 3.6 | 20 | 0.95 | 1.5 | 2900 | 3 | 55 | |
| 25-25 | 3.6 | 25 | 0.95 | 1.5 | 2900 | 3 | 55 | |
| 40-20 | 10 | 20 | 1.4 | 3 | 2900 | 3 | 45 | |
| 40-30 | 10 | 30 | 1.6 | 3 | 2900 | 3 | 42 | |
| 50-25 | 12.5 | 25 | 1.8 | 3 | 2900 | 3 | 55 | |
| 50-30 | 15 | 30 | 1.9 | 3 | 2900 | 3 | 46 | |
| 65-32 | 25 | 32 | 4.7 | 5.5 | 2900 | 3 | 65 | |
| 80-20 | 50 | 20 | 4.6 | 5.5 | 2900 | 3 | 45 | |
| 80-25 | 50 | 25 | 5.7 | 7.5 | 2900 | 3 | 67 | |
| 80-30 | 50 | 30 | 6.9 | 7.5 | 2900 | 3.5 | 68 | |
| 80-40 | 45 | 40 | 10 | 11 | 2900 | 3.5 | 48 | |
| 80-50 | 50 | 50 | 12 | 15 | 2900 | 3.5 | 57 | |
| 80-55 | 50 | 55 | 13.5 | 18.5 | 2900 | 4 | 50 | |
| 100-32 | 100 | 32 | 12 | 15 | 2900 | 3.5 | 70 | |
| FSB(D) | 40-15(D) | 5 | 15 | 0.4 | 2.2 | 2900 | 3 | 40 |
| 40-20(D) | 10 | 20 | 1.2 | 3 | 2900 | 3 | 42 | |
| 40-30(D) | 10 | 30 | 1.2 | 3 | 2900 | 3 | 52 | |
| 50-20(D) | 12.5 | 20 | 1.5 | 3 | 2900 | 3.5 | 55 | |
| 50-25(D) | 12.5 | 25 | 1.8 | 3 | 2900 | 3.5 | 55 | |
| 50-30(D) | 15 | 30 | 1.9 | 3 | 2900 | 3.5 | 54 | |
| 65-32(D) | 25 | 32 | 3.6 | 5.5 | 2900 | 3.5 | 65 | |
| 80-25(D) | 42 | 25 | 3.8 | 7.5 | 2900 | 3.5 | 67 | |
| 80-30(D) | 50 | 30 | 6.8 | 7.5 | 2900 | 3.5 | 68 |
