Description
Product description

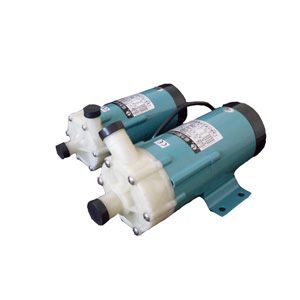

MP Magnetic Driven Circulation Pump operation in even the shaft and impeller, respectively, equipped with magnetic coupling to attract each other, without accompanied by the traditional mechanical seals, which is completely sealed. Rotation torque motor is driven by active magnetic and gravitational magnetic drive leaves the work operation. Today the usual magnetic drive pump is a great disadvantage in the case of absolute lack of liquid or non-functioning machine will be destroyed, to the user to add a magnetic drive pump you do not have to worry about. It is mining a special formula specifically designed for ceramic bearings, with a strong resistance to wear and corrosion resistance, quality and safety of its advanced performance and be absolutely guaranteed. Magnetic drive circulation pumps shall design with no seal, completely avoid the presence of traditional mechanical seal pump leak caused by corrosion of liquid contamination defects, industrial equipment is the best liquid delivery pump.
Model | Max Flow | Max Head | Power | Rotation | Voltage | Density |
MP-6R | 8 | 1 | 3 | 2900 | 220 | <1.2 |
MP-6RZ | 5.5 | 2.1 | 3 | 2900 | 220 | <1.1 |
MP-10R | 11 | 1.5 | 6 | 2900 | 220 | <1.1 |
MP-15R | 16 | 2.7 | 10 | 2900 | 220 | <1.3 |
MP-15RM | 16 | 2.4 | 10 | 2900 | 220 | <1.3 |
MP-20R | 27 | 3.1 | 20 | 2900 | 220 | <1.2 |
MP-20RM | 27 | 3.1 | 20 | 2900 | 220 | <1.2 |
MP-20RX | 46 | 1.8 | 20 | 2900 | 220 | <1.3 |
MP-20RXM | 46 | 1.8 | 20 | 2900 | 220 | <1.3 |
MP-20RZ | 10 | 4.6 | 20 | 2900 | 220 | <1.1 |
MP-20RZM | 10 | 4.6 | 20 | 2900 | 220 | <1.1 |
MP-30R | 33 | 3.8 | 45 | 2900 | 220 | 1.3 |
MP-30RM | 33 | 3.8 | 45 | 2900 | 220 | 1.3 |
MP-30RX | 62 | 2.9 | 45 | 2900 | 220 | 1.1 |
MP-30RXM | 62 | 2.9 | 45 | 2900 | 220 | 1.1 |
MP-30RZ | 15 | 8 | 45 | 2900 | 220 | 1.1 |
MP-30RZM | 15 | 8 | 45 | 2900 | 220 | 1.1 |
MP-40R | 45 | 4.6 | 65 | 2900 | 220 | 1.1 |
MP-40RM | 45 | 4.6 | 65 | 2900 | 220 | 1.1 |
MP-40RX | 75 | 3.3 | 65 | 2900 | 220 | 1.1 |
MP-40RXM | 75 | 3.3 | 65 | 2900 | 220 | 1.1 |
MP-55R | 60 | 5.6 | 90 | 2900 | 220 | 1.2 |
MP-55RM | 60 | 5.6 | 90 | 2900 | 220/380 | 1.2 |
MP-55RZ | 25 | 10 | 90 | 2900 | 220/380 | 1.1 |
MP-55RZM | 25 | 10 | 90 | 2900 | 220/380 | 1.1 |
MP-70R | 86 | 6.7 | 150/180 | 2900 | 220/380 | 1.1 |
MP-70RM | 86 | 6.7 | 150/180 | 2900 | 220/380 | 1.1 |
MP-100R | 120 | 8.6 | 250/265 | 2900 | 220/380 | 1.3 |
MP-100RM | 120 | 8.6 | 250/265 | 2900 | 220/380 | 1.3 |
MP-100RX | 170 | 9 | 250 | 2900 | 220/380 | 1.3 |
MP-120R | 220 | 10.5 | 370 | 2900 | 220/380 | 1.3 |
