Description
Product Characteristics:
1.Special inner teflon bellow seal,self cooling design,no need cooling circulation line.2. Strong self-priming design, it can reach 20ft,equip non-return valve, resistant the liquid back.3.Strong resistant corrosion, material include PP+GF,CFPP,PVDF,CPVC,FRPP,PP.etc
Model Indication:
For Example: (1)PD-(2)50(3)03(4)2(5)N(6)B(7)L-(8)C(9)C(10)H
(1)PD-TYPE
Material:PD-PP+GF,PDC-CFRPP,PDK-PVDF,PDA-CPVC
(2)Dia. Inlet/Outlet: 40-1-1/2’’;50-2’’
(3)HP :01-1HP;02-2HP;03-3PH;05-5HP
(4)POLE:2-2P;4-4P
(5)Rubber Material:N-NBR;E-EPDM;V-VITON
(6)B indicate non-check valve;A indicate check valve
(7)L-low head;H-high head
(8)Fix Ring: C-CERAMIC;S-SIC
(9)Rotation Ring:C-CARBON
(10)Spring: H-HASTELLOY-C;S-SUS316

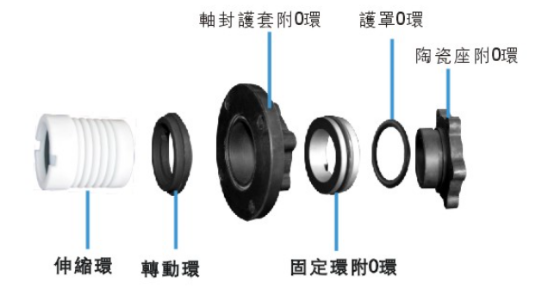

Exploded View:
Note:
Material
Foot stand:FRPP, Shaft :SS304, Shaft Sleeve:4F, shaft sleeve shield:FRPP, Impeller:FRPP , Rear Cover:FRPP, Front shaft Seal:4F, Middle Cover:FRPP, Non-return Valve: Rubber EPDM,Head:FRPP, Gasket:Rubber EPDM, Rotate ring:Graphite,Static Ring:silicon carbide
O ring:EPDM.
Main materials: FRPP,4F, Silicon carbide, Graphite, EPDM.

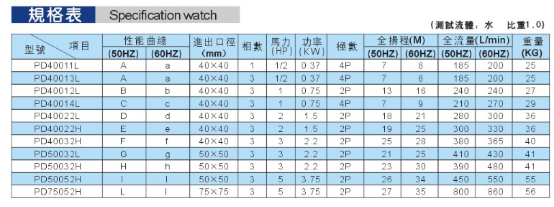

Specification Table:
