Description
Technical Data:
| Model | Capacity (L/Min) | Head (m) | Power (Kw) | Rotation (RPM) | Diameter (mm) | Discharge | Material | Temperature | Viscosity(Cps) | Shaft |
| HD+AL | 100 | 7 | 370 | 9500 | 41 | 25 | AL | 100 | 300 | SS304 |
| HD+AL-HP | 60 | 13 | 370 | 9500 | 41 | 25 | AL Alloy | 100 | 700 | SS304 |
| HD+SS304 | 100 | 7 | 370 | 9500 | 42 | 25 | SS304 | 100 | 300 | SS316L |
| HDSS304HP | 60 | 13 | 370 | 9500 | 42 | 25 | SS304 | 100 | 700 | SS316L |
| HDSS316L | 100 | 7 | 370 | 9500 | 42 | 25 | SS316L | 100 | 300 | SS316L |
| HDSS316LHP | 60 | 13 | 370 | 9500 | 42 | 25 | SS316L | 100 | 700 | SS316L |
| HDPPHT | 100 | 7 | 370 | 9500 | 41 | 25 | PP | 80 | 300 | SS316L |
| HDPPHT-HP | 60 | 13 | 370 | 9500 | 41 | 25 | PP | 80 | 700 | HB |
| HD+PVDF | 100 | 7 | 370 | 9500 | 41 | 25 | PVDF | 100 | 300 | HB |
| HDPVDF-HP | 60 | 13 | 370 | 9500 | 41 | 25 | PVDF | 100 | 700 | HB |
| HD+PTFE | 100 | 7 | 370 | 9500 | 50 | 25 | PTFE | 130 | 300 | HB |
| HDPTFE-HP | 60 | 13 | 370 | 9500 | 50 | 25 | PTFE | 130 | 700 | HB |
Note:

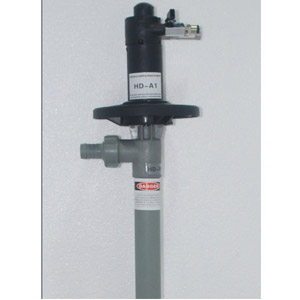

1.The Motor is Explosion-proof Air Driven Motor
2.Voltage:220V,50Hz
3.Model:HD-A1
