Description
Product description

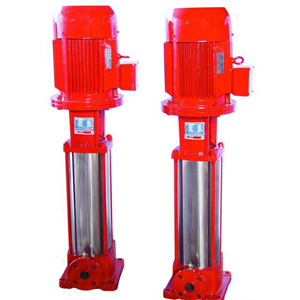

XBD (I) medium and low pressure fire pump unit is a new generation developed on the base of the former vertical multistage pump, which is in compliance with the latest standard on fire pumps. This series of pumps can meet the requirements of fire pump in respect of performance, structure, materials and configuration. Thanks to the use of advanced hydraulic model, it can well meet users’ expectations. This pump takes a vertical structure to feature high efficiency and wide range of performance, and to better save occupation space. The superior motor with nice bearing makes it working with secure dependability, low noise and little vibration. Hydraulically balanced axial force to reduce balancing drum, making operation more smoothly. Shaft seal can be mechanical seal or packing seal. This pump is featured by sound pipeline arrangement of inlet and outlet flanges, high speed and light weight.
Application
Suitable for fire water supply in residence, hotels, office buildings, commercial buildings, factories and hospitals.
Technical data
Flow rate: up to 72 m³/h
Head: up to 200 m
Speed: max 2900 rpm
Temperature: max 120℃
Casing pressure: up to 2.5 MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
