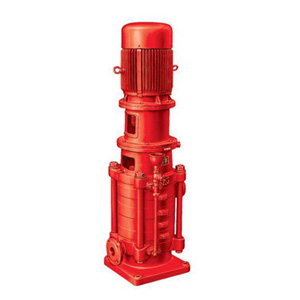

XBD-L fire pump

Product description
XBD-L fire pump is a vertical single entry multi segmental centrifugal pump to handle clean water or liquids similar to water in physical and chemical properties, not containing solid particles. It is mainly used for pressurized water supply in fire control system, and also used for water supply and discharge in factories and mines. The flow range of liquid handled is from 5～80L/s, pressure range 0.2～2.25MPa, matching power range 1.5～200kW, and diameter range φ50～φ200mm.

Application
They are mainly used for pressurized water supply in pipeline for fire control system. They are also used for industrial and urban water supply and discharge, pressurized water supply in high-rise constructions, distant distance water supply ,cold and hot water circulation pressurization in heating, bathrooms and boilers, water supply in air-conditioning and refrigeration system, and used to match other equipments.

Technical data
Flow rate: up to 288 m³/h
Head: up to 220 m
Speed: max 1480 rpm
Temperature: max 80℃
Casing pressure: up to 2.25 MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
