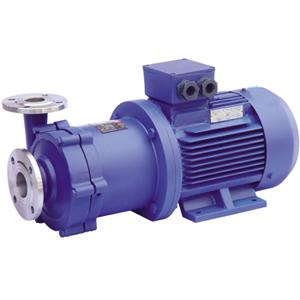

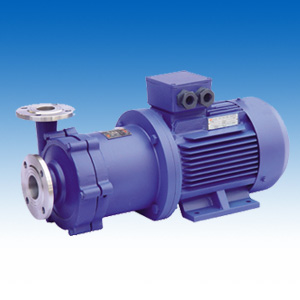

CQ Magnetic Drive Centrifugal Pump

Product description
Magnetic Drive Centrifugal Pump ( magnetic pump for short ) is generally consisted of motor, magnetic coupling and anticorrosive centrifugal pump. It is mainly to feature drive transferred by coupling and completely leak tightness. When motor drives theexternal magnet steel of magnetic coupling to rotate, the magnetic force line passes through the clearance and spacer sleeve to act on the internal magnet steel, making the rotor and motor rotating synchronously, thus to transfer the torque with out any mechanical contact. At the end of dynamic input of pump shaft, as liquid has been enclosed in the stationary spacer sleeve without dynamic seal, thus to actualize complete leak tightness.

Application
CQ series magnetic pumps are used in the industries of petroleum, chemical, pharmaceutical, electroplating, environmental protection, food stuff, photographing, water treatment and national defense etc. to deliver inflammable, explosive, volatile, toxic rare and various corrosive liquid, suitable for liquid not containing solid particle, fiber and magnetic materials, suction pressure not greater than 0.2Mpa, maximum working pressure up to 1.6 Mpa, temperature not exceeding 100℃, density not over 1600 kg/m3, viscidity lower than 3 x 10-6m2/s.

Technical Data
Flow rate: up to 51 m³/h
Head: up to 50 m
Speed: max 2900 rpm
Temperature: max 350℃
Casing pressure: low pressure
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
