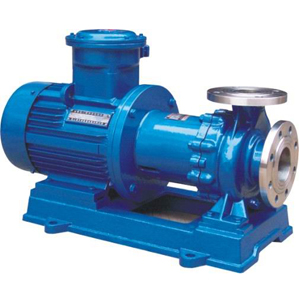

CQB series magnetic pump

Product description
CQB series magnetic pump are late model fullu leak tight anticorrosive pumps developed by national design group for magnetic pumps, with their technical and economical criteria in parallel with the level of their counter parts abroad at the end of 1980’s. the type and basic parameters of CQB series magnetic pumps apply the standard of JB/T7742-95 minitype magnetic drive centrifugal pump, and are in accordance with the enterprise standard of Q/BTB01-2006 magnetic drive centrifugal pump.

Application
CQB series magnetic pumps are used in the industries of petroleum, chemaical, pharmaceutical, electroplating, environmental protection, food stuff, photographing, water treatment and national defense etc. to deliver inflammable, explosive, volatile, toxic rare and various corrosive liquid, suitable for liquid not containting solid particle, fibre and magnetic materials, suction pressure not greater than 0.2Mpa, maximum working pressure up to 1.6 Mpa, temperature not exceeding 100℃, density not over 1600 kg/m3, viscidity lower than 3 x 10-6m2/s.

Technical Data
Flow rate: up to 100 m³/h
Head: up to 80 m
Speed: max 2900 rpm
Temperature: max 100 ℃
Casing pressure: up to 1.6 MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
