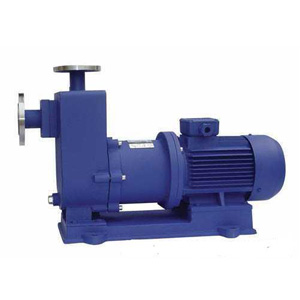

ZCQ series self-priming magnetic drive pump

Product description
ZCQ series self-priming magnetic drive pump is a new product developed on the basis of CQ magnetic drive pump. With the latest technology abroad, it is a great success proven by repeated research and test by our engineering technicians.  Not only carrying the advantages of CQ magnetic drive pump, like full seal, no leakage, and corrosion resistance, it is also provided with self-priming performance, with no need of bottom valve and priming water, self-priming height up to 4 meters.

Application
It is widely used in the industries of petroleum, chemical, pharmaceutical, electroplating, printing, dyeing, foodstuff, and scientific research institutions etc. to handle acid and alkali liquid, oils, rare precious, toxic and volatile liquid, or to match circulating water equipment. It is especially suitable for leaky, inflammable and explosive liquid.

Technical Data
Flow rate: up to 100 m³/h
Head: up to 50 m
Speed: max 2900 rpm
Temperature: max 280℃
Casing pressure: low pressure
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
