Description
Product description

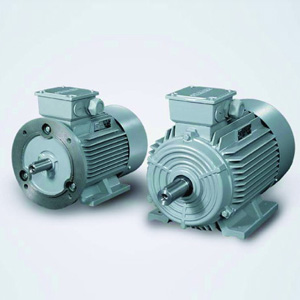

1LG0 Series of 3 phase asynchronous motors are Totally Enclosed Fan Cooled(TEFC) with IP55 environmental protection. Designed and manufactured in according to IEC standards.
Features
*Frame and terminal box material: grey cast iron
*Standard color :stone grey RAL7030
*Efficiency class IE1 according to IEC60034-30
*Frequency:50Hz/60Hz
*Frame size:80-355mm
*Rated power range:0.55-355kW at 50Hz
*Standard mounting types and variations(IEC60034-7)
*TEFC with IP55 degree of protection(IEC60034-5)
*Overload capacity of 1.5 times rated current for 2 minutes(IEC60034-1)
*Spacer heater as option
*Winding protection with PTC and PT100 as option
*Insulation class F
