Description
Product description

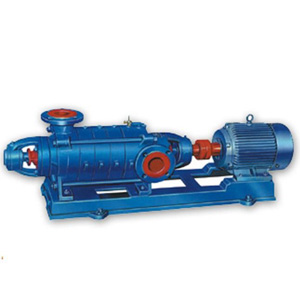

D Multi-stage Centrifugal Water Pump is a new product which is developed according to our national public security's regulation for the field of high building and fire fighting. Its function accords with the newest international standard JB/ T 2727-93.Adopt high efficience and energy saving water conservancy model.Horizontal and segmental type.
Application
It is widely used in high buildings, fire fighting system, factory, mine, oil and so on. It also can transmit below 90 degree centigree clean water and similar liquids.
Technical Data
Flow rate: up to 162 m³/h
Head: up to 245.7 m
Speed: max 2950 rpm
Temperature: max 80℃
Casing pressure: up to 3 MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
