Description
Product description

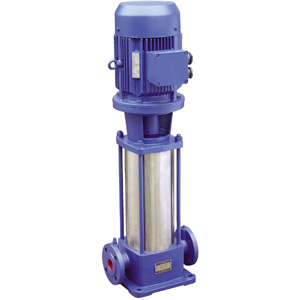

GDL multistage pipeline centrifugal pump is a new generation product designed and manufactured to the standard of JB/TQ6435-92 on the basis of the outstanding models home and abroad ,combining on fire contr01.This pump is vertically structured with a stainless steel casing to keep the inlet and outlet of pump on the same horizontal line and of the same diameter . It can be mounted in pipeline like a valve . Integrating the advantages of high pressure from multistage pump , small floor area from vertical pump and easy installation from pipeline mounted pump , this pump utilizes outstanding hydraulic model to feature high efficiency, energy saving and smooth running , etc. Its shaft seal uses wear resistant mechanical seal for leak-tightness and long service life .
Application
This type of pumps are mainly suitable for the circulation and pressurization of cold and hot clean
water in high pressure operation system, parallel water supply of several pumps in high-rise buildings
water supply for fire control and boilers cooling water system , as well as the transportation of various
washing liquors
Technical Data
Flow rate: up to 192 m³/h
Head: up to 230 m
Speed: max 2960 rpm
Temperature: max 40 ℃
Casing pressure: up to 0.3 MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
