Description
Specifications

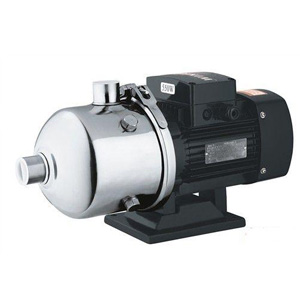

It's HLB Light horizontal multistage centrifugal pump
Application
1.Air-conditioning system
2.Cooling system
3.Industrial cleaning
4.Water treatment ( Water purification)
5.Aquiculture
6.Fertilizing/metering system
7.Environmental application
8.Other special applications
Applicable medium
1.Thin and clean non-flammable and non-explosive liquid without solid granules and fibers
2.Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums
3.When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power
4.Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.
Operation condition
1.Liquid temperature: Normal temperature type: -15°C~+70°C
2.Hot water type: +70°C~+120°C
3.Ambient temperature: up to +40°C
4.Max. operation pressure: 10 bar
5.Max. Inlet pressure is limited by max. operation pressure
Electric Motor
1. TEFC motor 2-pole
2. Protection class: IP55
3. Insulation class: F
4. Standard voltage, 50Hz: 1×220-240V
3×220-240V/380-415V
5. Single phase motor (max.): 1.1 kw
HLB performance table
Model | Motor (KW) | Q (m3/h) | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 |
HLB2-20 | 0.37 | H (m) | 19 | 18 | 16 | 14 | 13 | 11 | 9 |
HLB2-30 | 0.55 | 28 | 27 | 24 | 21 | 20 | 17 | 14 | |
HLB2-40 | 0.55 | 36 | 34 | 32 | 28 | 26 | 23 | 17 | |
HLB2-50 | 0.55 | 46 | 43 | 40 | 35 | 33 | 28 | 22 | |
HLB2-60 | 0.75 | 54 | 50 | 48 | 42 | 38 | 33 | 25 | |
HLB4-20 | 0.55 | 19 | 18 | 16 | 15 | 13 | 10 | 7 | |
HLB4-30 | 0.75 | 28 | 27 | 24 | 22 | 19 | 15 | 10 | |
HLB4-40 | 0.75 | 38 | 36 | 32 | 30 | 26 | 20 | 14 | |
HLB8-20 | 0.75 | 19 | 18.5 | 18 | 17 | 15 | 13 | 11 | |
HLB8-30 | 1.1 | 29 | 28 | 27 | 25.5 | 22.5 | 20 | 17.5 | |
HLB8-40 | 1.5 | 39 | 38 | 36 | 34 | 30 | 26.5 | 22.5 | |
HLB8-50 | 2.2 | 49 | 47 | 45 | 42.5 | 38 | 33 | 28 |
