Description
Product description

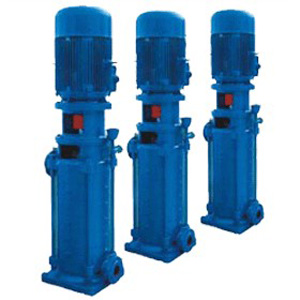

LG series vertical multistage centrifugal pump is a new product developed in compliance with the standard of China fire control bureau for water supply and discharge in high-rise constructions. Thanks to the advanced energy-saving hydraulic model, it is featured by high efficiency and wide performance range to better meet the operating requirements of users. Besides, this pump takes a vertical and segmental structure, and the advantages of security, stability, long life, small occupation space, easy installation and maintenance.
Application
This series of pumps are especially suitable for the water supply and discharge in high and low residence constructions, hospitals, hotels, department stores and office buildings, fire control, spraying, distant distance transportation, as well as water circulation in production process, etc.
Technical Data
Flow rate: up to 72 m³/h
Head: up to 180 m
Speed: max 2900 rpm
Temperature: max 120 ℃
Casing pressure: up to 2.5 MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
