Description

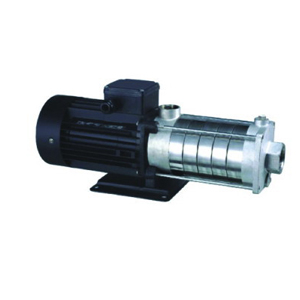

Horizontal multistage pump
CHDF series subsection type horizontal multistage centrifugal pumps adopt axial inlet and radial outlet, attach with long shaft eleclric motor.All flow passages parts made of stainless steel.The pump warm welcome for compact structure, high efficiency and reliable quality etc.
Application
CHDF series pumps are widely used in industrial and domestic field.
Water supply or boosting.
Air-conditioning system or cooling system.
Industrial cleaning or washing system.
Water treatment system or Water purification system.
Aquiculture or Fertilizing.
Environmental protection application.
Other industrial or domestic appllications.
Operation condition
Medium temperature:
Normal temperature type: -15℃~+70℃
Hot watertype: +70℃~+110℃
Ambient temperature: up to +40℃
Max. Operation pressure: 10bar
Max. Inlet pressure is limited by the Max. Operation pressure
Electric motor
Total -enclosed Fan-cooled two-pole standard motor
Aluminum housing motor
Protection class:IP55,insulation c1ass: F
Standard voltage:60Hz:
1X220-240V
3X220-240V
3X380-415V
Medium
Thin and clean, non-flammable and nonl-explosive medium without solid granules or fibres.
Mineral water, soft water pure water, edible vegetable oil and other slight chemical medium.
When thedensity orviscosity ofmedium is 1arger than that of water, it is necessary to choose a high-power driving motor.
Whether a specific medium is suitab1e for the pump depends on many factors. among which the most important ones arechlorine content, PH-value, temperature solvent and oil content etc.
Curve conditions
Following conditions are suitable for the perforrnance curves shown above.
All the performance curves are based on the measured value of a motor at constant speed of 3500rpm.
Curve tollerance in conformity with ISO9906 appendix A.
Measurement is done with 20℃ air-free water kinematic viscositY of 1 mm²/sec.
The operation of pump shall refer to the perfomance region described by the thickcned curve to prevent overheating due too small folw rate or overload of molor due to too large flow rate.
Type | CHDF2 | CHDF4 | CHDF8 | CHDFI6 |
Rated flow(m³/h) | 2 | 4 | 8 | 16 |
Flow range(m³/h) | l~4 | 2~8 | 6~13 | 8~28 |
Max. pressure(bar) | 7.5 | 8 | 7 | 7 |
Motor power(kw) | 0.55~1.5 | 0.75~0.2.2 | 0.75~3 | 2.2~7.5 |
Temperature range(℃) | -15℃~+110℃ | |||
Max.efficiency(%) | 46 | 59 | 64 | 70 |
Material of CHDF
NO. | Name | Material | AISI/ASTM |
2 | Gag | Stainless steel | AISI304 |
3 | Bearing | Tungsten carbide | |
4 | Impeller | Stainless steel | AISI304 |
5 | Shaft | Stainless steel | AISI304 |
6 | Water-out guide vane | Stainless steel | AISI304 |
8 | Mechanical seal | ||
9 | Motor and cover | Aluminum alloy | |
10 | Base frame | Cast iron | ASTM25B |
11 | Pull-rod | Stainless steel | AISI304 |
12 | Guide vane | Stainless steel | AISI304 |
13 | Support guide vane | Stainless steel | AISI304 |
14 | Impeller separating sleeve | Stainless steel | AISI304 |
Water-in body | Stainless steel | AISI304 | |
7 | Water-out body | Stainless steel | AISI304 |
1 | Water-out body | Cast iron | ASTM25B |
7 | Water-out body | Cast iron | ASTM25B |
