Description
Product description

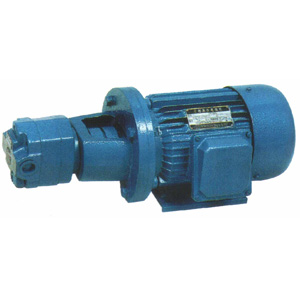

BBG gear pump is a displacement gear oil pump. Internal gear is circular-arc tooth. Out gear is prolate cycloid gear. This pump can abstract liquids relevant to oil with viscosity of 1-8 °E, with temperature rang of 10 to 50 ℃.Stainless steel type can pump corrosive liquids. High temperature type can pump liquids reach 180 ℃.It is with single structure, low noise, smooth transferring, good self-priming function, and high speed.
Application
BBG Circular Gear Oil Pump widely used in low pressure system because of its simple structure, low noise, steady and flat oil-line and good self priming performance, high speed characteristic. It can be used as the dynastic pump or lubricating pump and cooling pump. This pump is suitable for transmitting all kinds of oils.
Technical Data
Flow rate: up to 7.5 m³/h
Head: up to 5 m
Speed: max 1500rpm
Temperature: max 180℃
Casing pressure: up to 2.45 MPa
Shaft seal: mechanical sealing
Material: cast iron, stainless steel
