Description
Feature

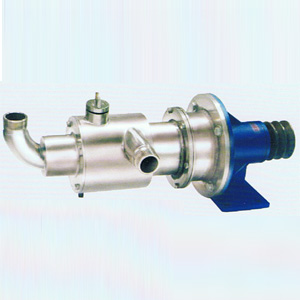

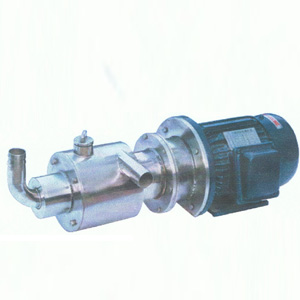

internal gyrus pump,with high efficiency,strong self priming ability,widely used.
Media:normal liquid,corrosive liquid,clear or unclear water,liquid contains air or fibre ,solf materials.
Materials:SS
Viscosity:up to 200,000 Cst
Operation stable and constantly.
The flow capacity have direct ratio relationship with speed,you can adjust the capacity by changing the speed.
Its pressure can auto changed base on the resisstance of discharge pipeline,energe save and safe.。
Simple structure ,wearable ,easy be repared.
Can be used as dosing pump and metering pump

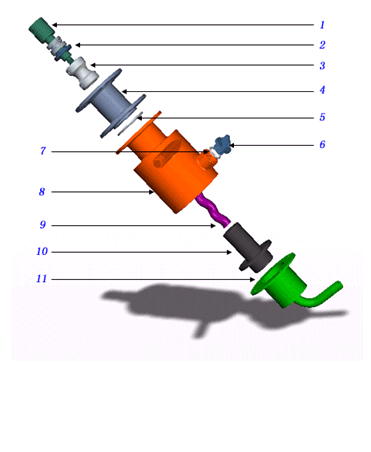

Structure
1.coupling shaft 2.seal ring. 3.gimble
4.coupling bracket. 5.O ring. 6.water nozzle
7.O ring. 8.casing. 9.rotor.10.stator.
11.pump cover
model | flow (m³/h) | head (m) | speed (r/min) | discharge (mm) | power (Kw) | voltage (V) |
G15-1-0.37 | 2 | 50 | 2800 | Φ15 | 0.37 | 220/380 |
G20-3-0.55 | 3 | 50 | 2800 | Φ20 | 0.55 | 220/380 |
G32-4-0.75 | 4 | 50 | 2800 | Φ32 | 0.75 | 380 |
G40-6-1.1 | 6 | 50 | 2800 | Φ40 | 1.1 | 380 |
G50-8-2.2 | 8 | 50 | 2800 | Φ50 | 2.2 | 380 |
G15-1-0.37 | 1 | 50 | 1400 | Φ10 | 0.37 | 220/380 |
G20-1.5-0.55 | 1.5 | 50 | 1400 | Φ20 | 0.55 | 220/380 |
G32-2 -0.75 | 2 | 50 | 1400 | Φ32 | 0.75 | 380 |
G40-3-1.1 | 3 | 50 | 1400 | Φ40 | 1.1 | 380 |
G50-4-2.2 | 4 | 50 | 1400 | Φ50 | 2.2 | 380 |
