SOW

Product description

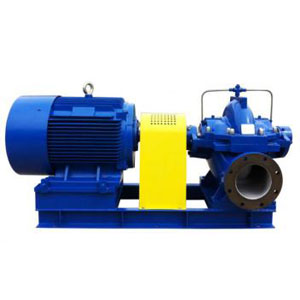

SOW series single stage double entry pump is a horizontally split volute centrifugal pump, mainly used to handle clean water or liquids similar to water in physical and chemical properties, temperature not above 105℃.

Application

It is suitable for transportation of ordinary liquid in the areas of waterworks, pump stations, power stations, water circulation in air conditioning, hot water circulation in heating, industrial water supply system, fire control system, ships and oil refining etc.

Technical Data

Flow rate: up to 4200 m³/h

Head: up to 160 m

Speed: max 2900 rpm

Temperature: max 105 ℃

Casing pressure: up to 2.5 MPa

Shaft seal: mechanical sealing

Material: cast iron, stainless steel
