XS

Product description

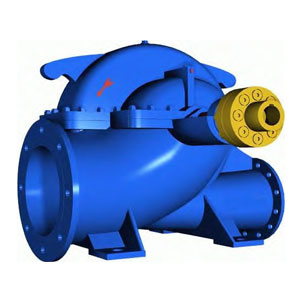

XS type single stage double suction centrifugal split pumps are new type of with high performance. Type XS pumps are advanced products developed from type SH.S.SA.SLS.SAP pumps. Unique design of type XS pumps working at high temperature using middle support to fasten the pump casing and using cooling seals oil lubrication bearing then pump suitable for working at 200℃ especially for supplying heated water to pipe net system . Type XS pumps look beautiful with visible lines adopting industrially designing. Type XS pumps are suitable for any site working condition due to using. SKF NSK bearing and other parts chosen by the customers and thus minimize the maintenance costs.

Application

They are widely used in delivering liquids to the water plant , circulation water system of air conditioner pipe net system of supplying heated water , construction , drainage pumping station , power station , industrial water supply system ship industry , mine and so on .

Technical Data

Flow rate: up to 1160 m³/h

Head: up to 200 m

Speed: max 2900 rpm

Temperature: max 105℃

Casing pressure: up to 2.5 MPa

Shaft seal: mechanical sealing

Material: cast iron, stainless steel
