AS

Product description

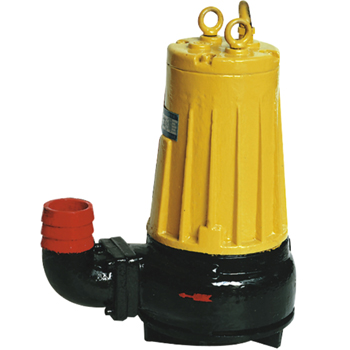

AS submerged sewage pumps are late-model sewage discharge equipments designed and manufactured on the basis of the advanced pump technology from Germany ABS and so on. Featured by simple structure, robust discharge capacity, high efficiency, and energy conservation etc. This type of pumps can be equipped with automatic control cabinets and automatic installation coupling device, making them finely configured and running more dependably.

Application

Applicable for handling liquid containing solid particles and long fiber, seriously polluted, viscous and slippery, sewage, clean water and other mediums similar to water in the industries of pharmaceutical, papermaking, chemicals, hospitals, hotels, and domestic sewage drainage system etc.

Technical Data

Flow rate: up to 145 m³/h

Head: up to 22 m

Speed: max 2850 rpm

Temperature: max 60℃

Casing pressure: up to 0.6 MPa

Shaft seal: mechanical sealing

Material: cast iron, stainless steel
