2X

Product description

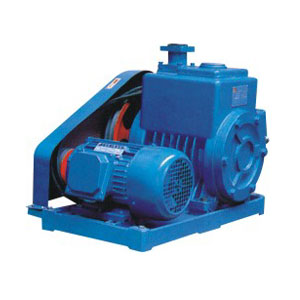

2X series vacuum pump takes a structure of double stage. Its working performance is composed of high pressure stage and low pressure stage. Its suction nozzle is connected with vacuum container or vacuum equipment to take in and let out the gas in the container during the operation. When the equipment obtains vacuum, the disc of exhaust valve at high pressure stage will close, and the gas taken in by high pressure stage will be transferred to the second stage, and then taken in and let out by the second stage to enable the equipment obtaining certain vacuum. The technical parameter of this pump is 6×10-2Pa. According to the service conditions of users, it can be fitted with vacuum booster pump, and this pump will be used as a prepump. With the exhausting capacity of booster pump increasing, prepump will continuously exhaust to enable the equipment obtaining higher vacuum.

Application

This pump is suitable for areas of metallurgy, chemical, electric light source vacuum, vacuum deposition, food package, medicine, blistering, electronics and drying, etc.

Technical Data

Speed: max 590 rpm

Temperature: max 40 ℃

Casing pressure: low pressure

Shaft seal: mechanical sealing

Material: cast iron, stainless steel
