SK

Product description

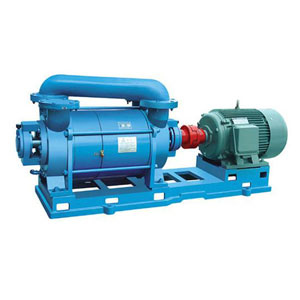

SK series water rounding vacuum pump is apply to suck air and the gas without corrosive, water-solubility and solid granule, make vacuum or pressure in seal condition. The impeller is installed in pump body. When the impeller is in operation, water formed into water rounding in pump, effected by centrifugal strength. During the half round rotate of impeller, the pressure between impeller vanes is lower than the air is suck in, and during the other half round rotate of impeller, the pressure between impeller is higher that the air is compressed out.

Application

It is applicable in machine petroleum, pharmacy, foodstaff, chinaware printing and dyeing, metallurgy, and others, especially in big water pump.

Technical Data

Flow rate: up to 120m³/h

Head: up to 60 m

Speed: max 1460 rpm

Temperature: max 70℃

Casing pressure: up to 0.5MPa

Shaft seal: mechanical sealing

Material: cast iron, stainless steel
